Новий Навантажувальна рампа Loading Ramp with with electro hydraulic tilting bridge - AZ RAMP - STAR- 10T-ZR-LLO-E

Mobile loading ramp with electro-hydraulic tilting bridges

Brand: AZ RAMP - Type: STAR-10-ZR-LLO-E

Load Capacity: 10,000 Kg

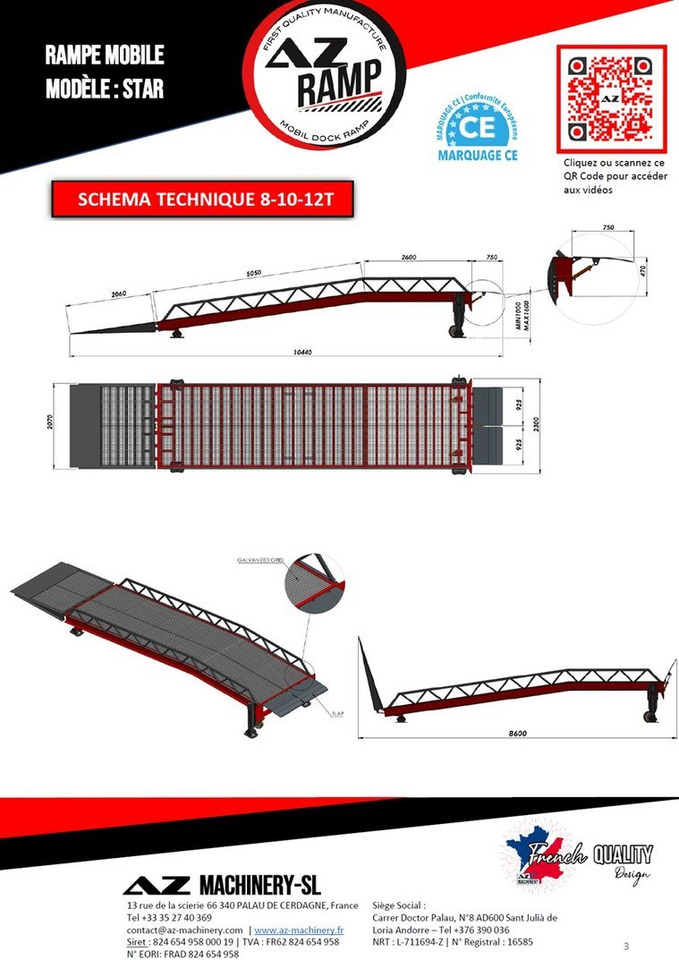

Dimensions: Total length extended: 13.50 m

Total Width: 2.41 m - Useful Width (Interior): 2.31 m

Length Inclined plane / Inclined part: 6.46 m

Horizontal platform length: 5.75 m

Length of inlet plate: 2.06 m - Length of outlet lips: 0.75 m

Adjustable lifting height: Mini: 1.00 m - Maxi: 1.60 m Slope: Min: 14.47% - Max: 24.76%

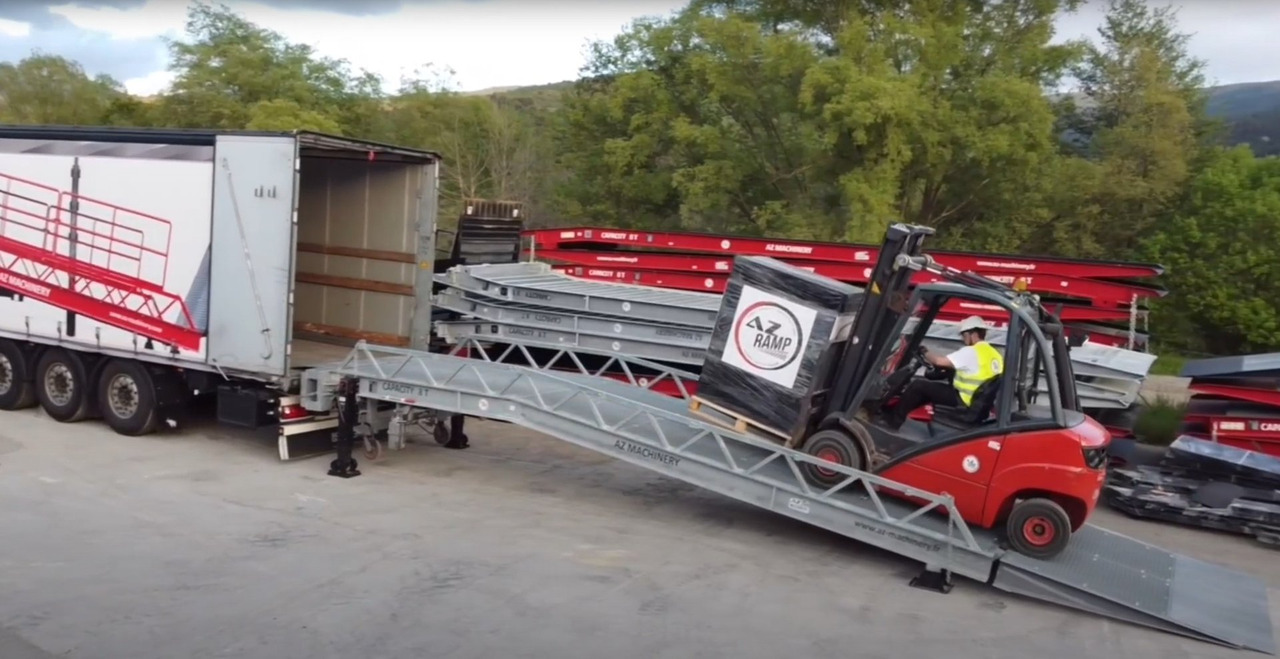

The + Product: Electric lifting of the inlet and outlet tilting lips (Three-phase 380V-50Hz). Quay ridges with 500 mm refuge area Wide ramp, with large horizontal plane when exiting the truck. Intended for use with 3 and 4 wheel forklift, storage, rolls, etc. 4 height-adjustable support legs with adaptive heads Side safety rails 35 cm high, removable Hot-dip galvanized grating non-slip running surface 2 lashing chains included, ramp mounted on inflatable tires.

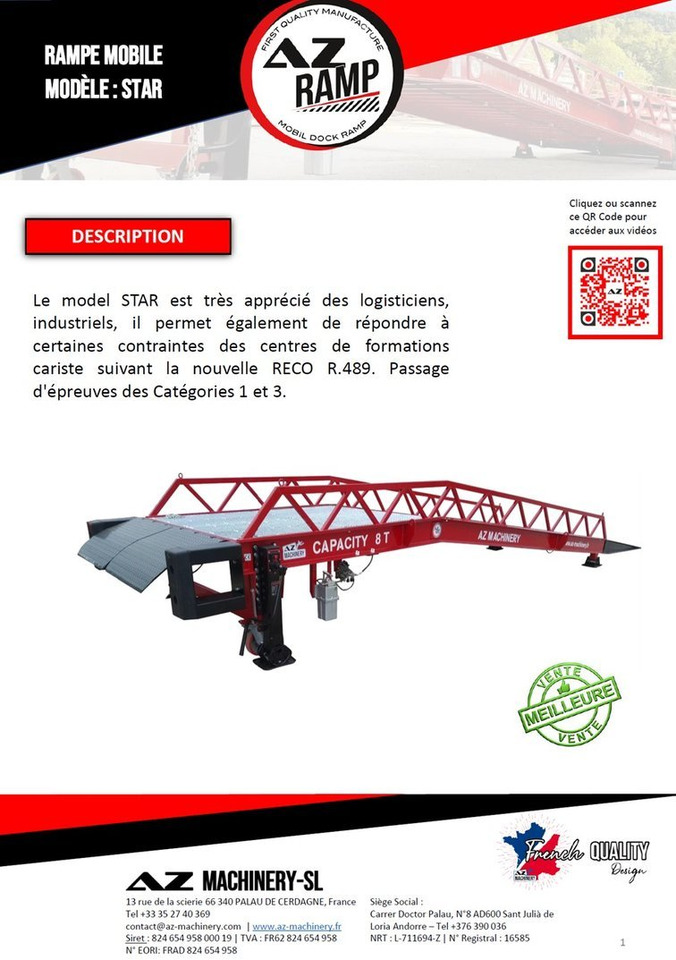

Applications: The STAR-ZR-LLO-E model is very popular with logisticians and manufacturers, it also makes it possible to meet certain constraints of driver training centers according to the new RECO R.489. Sitting of tests in Categories 1 and 3.
