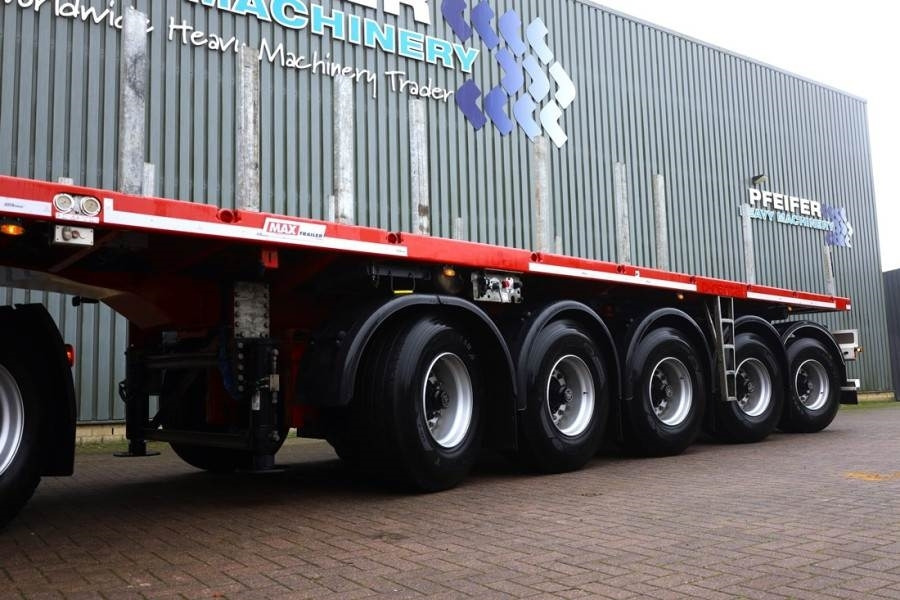

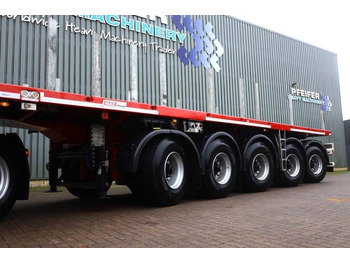

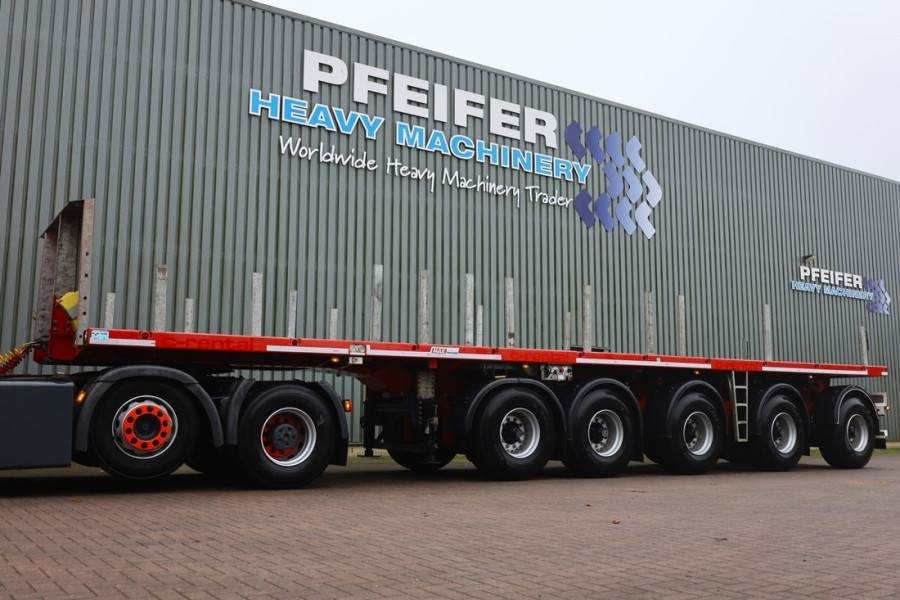

Бортовий напівпричіп/ Платформа Faymonville MAX410 The MAX410 with hydro-mechanical" steering

The MAX410 with „hydro-mechanical" steering is a 5 axle flatbed semi-trailer specialised in the transportation of crane components and weights. Manufacturer: Faymonville Typ: MAX410 5 Axle Building year: 2021 Chassis nr: YAMT45XXXL0105729 Suspension pneumatic Steering hydraulic steering Width 2.540mm 22.5" tires Always single tires Fifth wheel height loaded: 1,280 – 1,400mm Hydraulic front landing legs Row of stake pockets pluggable. Axles with pneumatic suspension, with drum brake, with lifting/lowering valve. Tire Goodyear 445/65 R 22.5 Top quality and long-lived protection against corrosion of the welded frame (standard steel grid blasted) guaranteed by - a 2 components of 2K zinc rich epoxy primer - a high quality 2 components 2K direct to metal top coat. Electric system conform to the EU-regulations lighting 24 volt ASPÖCK-NORDIK (ASS3). ASPÖCK-UNIBOX on the galvanised front connection ledge with socket 24N, 24S & 15 pole. Connection to the ISO norm. Reflectors (red or yellow) according to the EU regulation at the rear of the trailer. Yellow reflective tape according to the EU regulation over the entire length and at the rear. Landing gears JOST (mechanic) with 2 speeds, lifting capacity 24 t (50 t proof load). 2 wheel chocks with carrier. King pin 2". Storage for stakes in the central carrier . Red and yellow air couplings on the galvanised front connection ledge. Braking system WABCO following EU-regulations with EBS-E system, without connection to the truck Holder for one beacon light at the rear of the trailer. One galvanised steel headboard, height ca. 1,200 mm. On the right and left in the front area and at the rear of the trailer one holder for the warning boards and socket. CE (Declaration of Conformity). More detailed pictures / product movie on our website. pfeifermachinery.com Above specifications are subject to change without prior notice and subject to error
