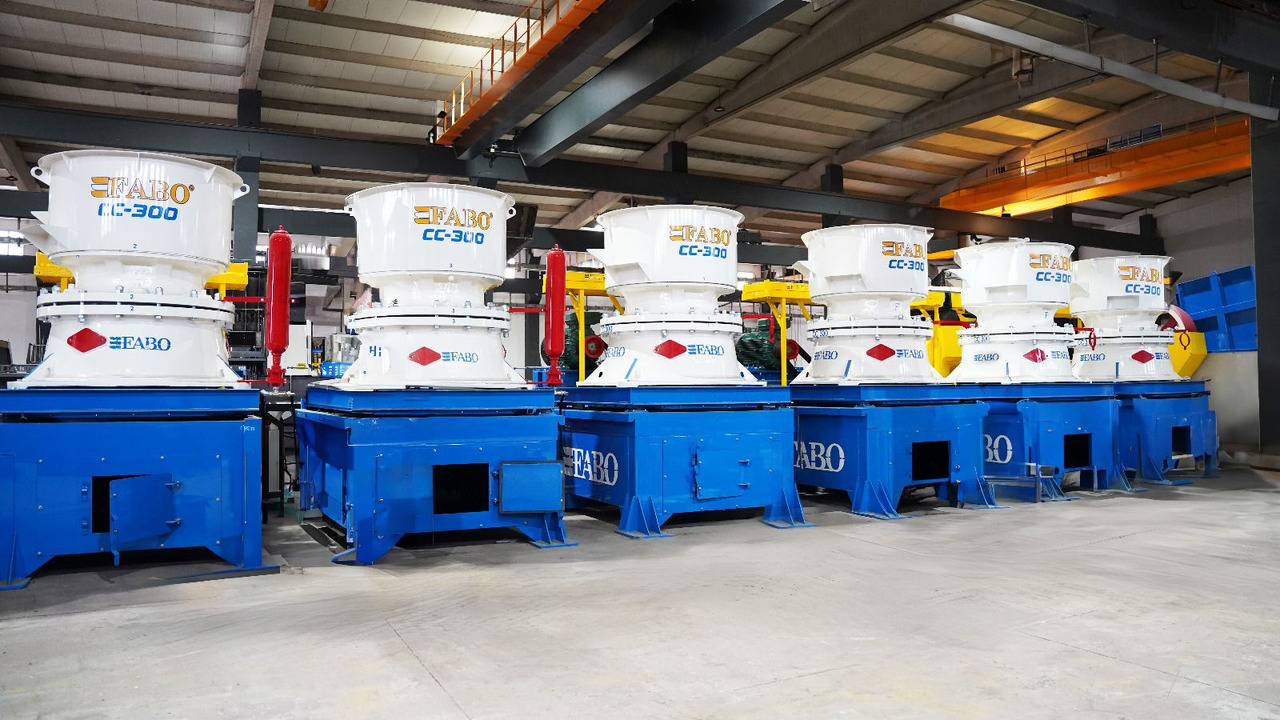

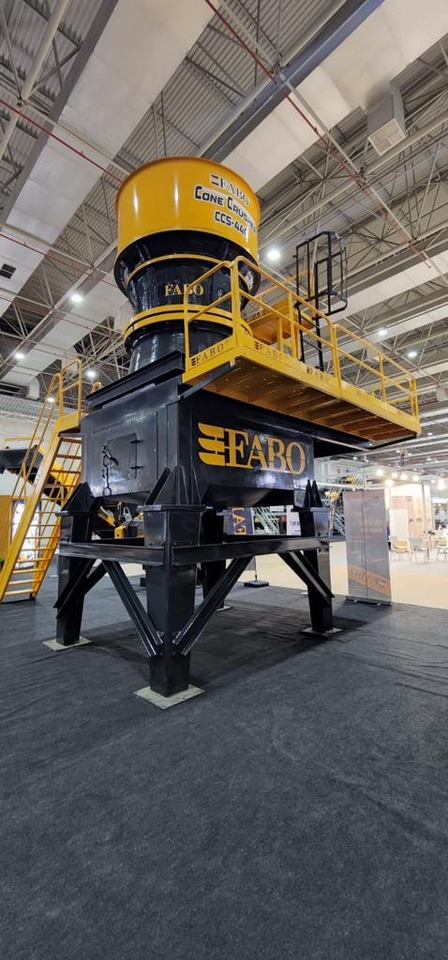

Новий Конусна дробарка FABO cone crusher

• All of our products are made with care and covered for 1 year warranty!
• Installation and Operator Training FREE

Cone crusher product group is designed especially for the hardest material, cone crushers are one of the best choices for crushing river gravel, basalt and granite, along with abrasive materials in the mining industry. The working principle of cone crushers is to break the material by compression, by squeezing it between its walls, which are completely covered with resistant mantle and a bowl liner. It has longer life than other crushers thanks to its long life wear parts.

Model: FABO CSS-440

Capacity: 300-550 t/h

Max. Feed opening;

EC 450 mm

C 400 mm

MC 300 mm

Motor: 220-250 kW,

Head diameter: 1300 mm

Dimensions (width * height): 3100 *2850 mm

Countershaft Speed-rpm: 750-1200

Weight: 31000 kg

• Hydroset Control
• Automatic Load Protection
• Practical discharge
• High capacity cubic production
• High-performance contactless labyrinth
• High productivity, low energy production and lower wear costs, long service life and high product yield with desired fine powders.

FOR FURTHER INFORMATION PLEASE FEEL FREE TO CALL US!!!
