Новий Дробарка FABO mobile crusher

• All of our products are made with care and covered for 1 year warranty!
• Installation and Operator Training FREE

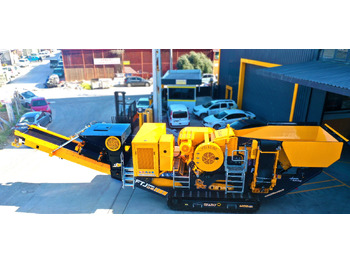

Fabo tracked jaw crusher FTJ 11-60 is a complete mobile system which moves on hydraulically driven tracked system with 1 km/h speeds and combination of a vibrating grizzly feeder, 1000 x 600 mm jaw crusher, foldable stockpile conveyors, control unit and electric generator.

In today's conditions and technological processes, businesses are beginning to think about how to make their field of activity more efficient. As they make it more efficient, they always take into consideration factors such as the operationally of the machines they use, their low cost and staffing needs. Our Tracked Crushers can crush with high performance even on the most demanding mine sites with its specially designed body and compact structure. Customization can be done to our tracked systems by Jaw Crusher, Primary and Secondary Impact or Cone Crusher.

All necessary equipment for the process is combined only single chassis and processing equipment is driven by electrical motors. Overall production capacity is 100-250 tph.

Advantages of Tracked Crushers;

-Heavy-duty walking tracks can reach places where ordinary machines cannot reach.

-It has the appropriate dimensions and sound level to crush construction waste in the city.

-The fuel consumption of the generator and walking track units are very economical.

-System maintenance and management is very easy with latest technology control software.

TECHNICAL SPECIFICATIONS:

-Model: FTJ 11-60

-Production Capacity: 100 – 250 tons per hour

-Maximum Feeding: 550 mm

-Crusher Type: Jaw Crusher

-SIZE: 1000x600 mm

-Generator: 275 kva

-CSS Setting: 40 – 150 mm

-Weight: 40 tons

– Low investment and operation cost

– Zero substructure preparation

– Easiness at usage and maintenance

– Easy assembly and disassembly advantages.

FOR FURTHER INFORMATION PLEASE FEEL FREE TO CALL US!!!
